TIFR Near Infrared Imaging Camera - II (TIRCAM2)

TIRCAM2 can provide near-infrared imaging observations in the wavelength range from 1 to 3.7 microns. It employs an InSb array with a pixel scale of 0.17 arcsec, and it covers a field of view of 86.5 arcsec x 86.5 arcsec. It has broad-band J, H, K and narrow-band BrG, K-cont, PAH and nbL filters. Deep imaging observations show that the instrument has the capability to observe sources up to 19.0 mag, 18.8 mag and 18.0 mag with 10% photometric accuracy in J, H and K bands, respectively, with corresponding effective exposures of 550s, 550s and 1000s. Stellar images with a FWHM of 0.45 arcsec in K-band were recorded under the best conditions. Another highlight of this camera is the observational capability for sources up to magnitudes of 9.2 in the narrow L-band (nbL; λcen∼ 3.59 microns). Sources with strong polycyclic aromatic hydrocarbon (PAH) emission at 3.3 microns can also be detected with TIRCAM2. It is permanently mounted on the side-port1 of the telescope.

Instrument parameters

Parameters Value
Type Imaging
Mount position Side port 1
Wavelength range 1 - 3.7 μm
Array size 512 X 512 pixel2
Pixel size 27 μm
Pixel scale 0”.17
Field of view 86”.5 X 86”.5
Readout noise 30 e-
Readout time 3.3 ms
Gain 10e-/ADU
Minimum exposure time 0.1 s
Available filters broadband: J, H, K and narrowband: BrG, K-cont, PAH, nbL
Limiting magnitude 19, 18.8, 18 mag with 10% photometric accuracy in J, H, K bands, respectively, with effective exposures of 550s, 550s, 1000s

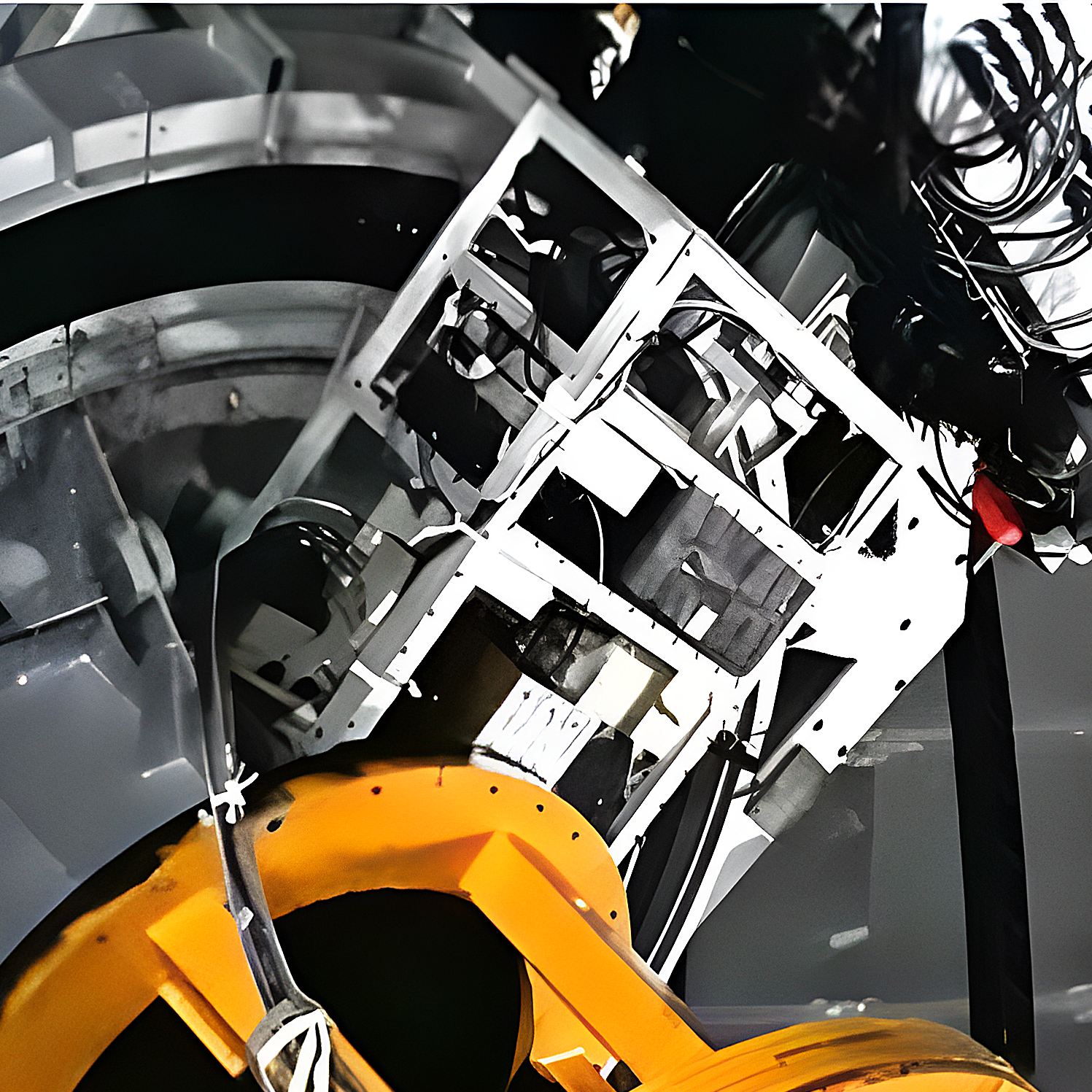

The picture shows TIRCAM2 mounted on side port 1 of the 3.6m DOT.

Latest update

  • 2025-04-22: To read the report on the current status of TIRCAM2 please click here
  • 2024-12-17: TIRCAM2 developed a problem, hence will not be available for the observations till further update.
  • 2020-12-08: The TIRCAM2 instrument mounted on the side-port1 of the telescope is now working fine.
  • 2020-11:27: The sampling time in the sub-array (322x32) mode of TIRCAM2 is reduced to 10 ms/frame.
  • 2020-11-04: TIRCAM2 is unmounted from the telescope for ground testing.
  • 2020-10-24: TIRCAM2 is not available for observations due to some technical issues.

Documents for users



RECENT PUBLICATIONS

  1. Exploring the Origin of Ultralong Gamma-Ray Bursts: Lessons from GRB 221009A
    Amit Kumar Ror, Rahul Gupta, Amar Aryan, Shashi Bhushan Pandey, S. R. Oates, A. J. Castro-Tirado, and Sudhir Kumar
    2024, ApJ, 971, 2, id.163, 26pp
  2. Influence of radiative feedback in Bright-Rimmed Cloud (BRC) 44
    C. Rishi, Neelam Panwar
    2024, 42nd meeting of the Astronomical Society of India (ASI), held 31 January-04 February 2024, in Bengaluru, India. Hosted jointly by Indian Institute of Science (IISc), Indian Space Research Organisation (ISRO) and Jawaharlal Nehru Planetarium (JNP).
  3. TIRCAM2 camera interface on the side port of 3.6-m Devasthal Optical Telescope
    Shailesh B. Bhagat, Milind B. Naik, Satheesha S. Poojary, Harshit Shah, Rajesh B. Jadhav, Balu G. Bagade, Savio L. D’Costa, B. Krishna Reddy, Nadish Nanjappa, Tarun Bangia, Devendra K. Ojha, Saurabh Sharma, Koshvendra Singh
    2023, JApA, 44,2, id.64
  4. TIRCAM2 fast sub-array readout mode for lunar occultation studies
    Milind B. Naik, Devendra K. Ojha, Saurabh Sharma, Shailesh B. Bhagat, Savio L. D'costa, Arpan Ghosh, Koshvendra Singh
    2023, JApA, 44, 1, id.51
  5. First Lunar Occultation Results with the TIRCAM2 Near-Infrared Imager at the Devasthal 3.6-m Telescope
    Saurabh Sharma, Andrea Richichi, Devendra K. Ojha, Brajesh Kumar, Milind Naik, Jeewan Rawat, Darshan S. Bora, Kuldeep Belwal, Prakash Dhami, and Mohit Bisht
    2022, Journal of Astronomical Instrumentation, 11, 4, id. 2240002
  6. Pluto’s Atmosphere in Plateau Phase Since 2015 from a Stellar Occultation at Devasthal
    B. Sicardy, N. M. Ashok, A. Tej, G. Pawar, S. Deshmukh, A. Deshpande, S. Sharma, J. Desmars, M. Assafin, J. L. Ortiz, G. Benedetti-Rossi, F. Braga-Ribas, R. Vieira-Martins, P. Santos-Sanz, K. Chand, and B. C. Bhatt
    2021, ApJL, 923(2):L31
  7. Quest for the Upcoming Periastron Passage of an Episodic Dust Maker and Particle-accelerating Colliding-wind Binary: WR 125
    B. Arora, J. C. Pandey, M. De Becker, S. B. Pandey, N. K. Chakradhari, S. Sharma, and B. Kumar
    2021, AJ, 162(6):257
  8. The disintegrating old open cluster Czernik 3
    Saurabh Sharma, Arpan Ghosh, D. K. Ojha, R. Pandey, T Sinha, A. K. Pandey, S. K. Ghosh, N. Panwar, S. B. Pandey
    2020, MNRAS, 498, 2309
  9. Further milliarcsecond resolution results on cool giants and binary stars from lunar occultations at Devashtal
    A. Richichi, Saurabh Sharma, T. Sinha, R. Pandey, A. Ghosh, D.K. Ojha, A.K. Pandey, M.B. Naik
    2020, MNRAS, 498, 2263
  10. Detection of PAH and nbL Features in Planetary Nebulae NGC 7027 and BD +303639 with TIRCAM2 Instrument on 3.6m DOT
    Rahul Kumar Anand, Shantanu Rastogi, Brijesh Kumar, Arpan Ghosh, Saurabh Sharma, D.K. Ojha, S.K. Ghosh;
    2020, JApA, 41, 1, id. 27
  11. Prospects for star formation studies with infrared instruments (TIRCAM2 and TANSPEC) on the 3.6-m Devasthal Optical Telescope
    Devendra Ojha; Swarna Kanti Ghosh; Saurabh Sharma; Anil Kumar Pandey, ; Tapas Baug; Joe Philip Ninan, ; Brijesh Kumar, Manoj Puravankara, Savio D'Costa; Milind Naik; Satheesha Poojari, ; Shailesh Bhagat, ; Rajesh Jadhav, ; Ganesh Meshram, ; Pradeep Sandimani, Sanjay Gharat; Chandrakant Bakalkar
    2018, BSRSL, 87, 58-87
  12. Prospects of star formation studies with near-infrared instruments on 2-4 meter class Indian ground-based telescopes
    Devendra Kumar Ojha, S. K. Ghosh, Tapas Baug, Priyanka Chaturvedi, Puravankara Manoj, Savio L. A. DCosta, Milind B. Naik, Sateesh s. Poojary, Pradeep R. Sandimani, J. P. Ninan, Saurabh Sharma, A. K. Pandey;
    2018, The Cosmic Wheel and the Legacy of the AKARI archive: from galaxies and stars to planets and life. Edited by Takafumi Ootsubo, Issei Yamamura, Kazumi Murata and Takashi Onaka. pp.257-260
  13. TIFR Near Infrared Imaging Camera-II on the 3.6 m Devasthal Optical Telescope
    T. Baug, D. K. Ojha, S. K. Ghosh, S. Sharma, A. K. Pandey, B. Kumar, A. Ghosh, J. P. Ninan, M. B. Naik, S. L. A. D’Costa, S. S. Poojary, P. R. Sandimani, H. Shah, B. Krishna Reddy, S. B. Pandey, and H. Chand;
    2018, Journal of Astronomical Instrumentation, 7(1):1850003–1881
